Powerful medical AIO - MATE

Kraftfuld medical all in one enhed med Intel Core i7/i5 8/6 Core processor. Blæserløst design, capacitiv multi-touch og FHD display med bred synsvinkel.

onyx healthcare mate medical aio all in one

The MATE2-2210 / 2410 are 22 / 24-inch FHD 1920x1080 resolution, fanless systems with a 1000:1/3000:1 high contrast ratio and 178-degree vertical and horizontal wide viewing angle. Featuring powerful Intel Core i7/i5 8/6 Core processors supporting turbo boost up to 3.80/3.60 GHz, the MATE2-2210/2410 are designed as powerful medical AIO computers.

The 10-finger capacitive multi-touch screen guarantees trouble-free use even with double layer operating room gloves and a 10 billion click life with up to 95% transparency rate. The fanless cooling design eliminates the need for ventilation holes to keep the environment quiet, clean, and lowers maintenance effort. With an optional PCI Express [x4]/[x1] card, you can extend the system peripheral capabilities by adding a 4K resolution video capture card, 10 Gb fiber-optic LAN card, or an isolated RS-232/USB card. Optional 25Wh battery backup power can support up to 40 minutes of uninterruptible operation if AC power is lost.

The MATE2-2210/2410 are powerful medical AIO computers ideal for use in operating rooms, emergency departments, and intensive care units where image data processing, high definition and crystal-clear images are necessary for critical patient care.

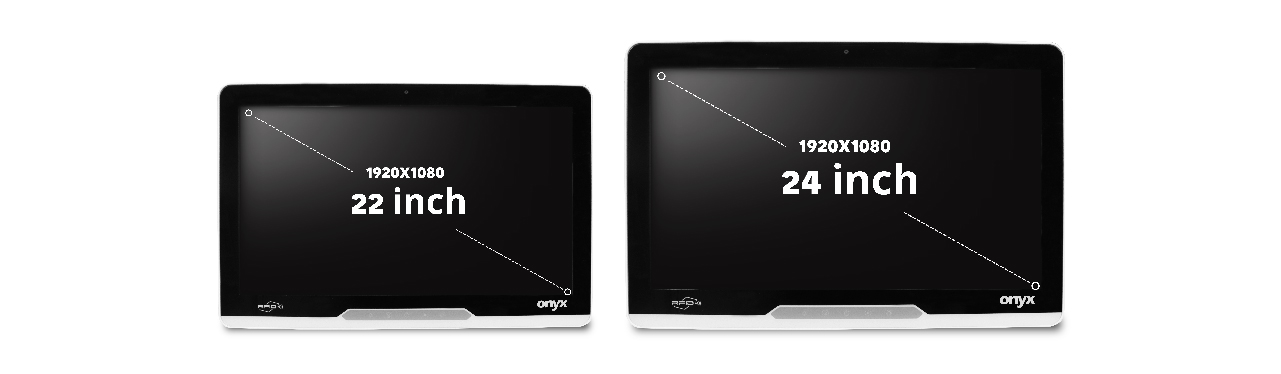

22” / 24” High Contrast and Wide Viewing Angle FHD Display

22”/24” FHD 1920x1080 resolution, 1000:1 /3000:1 high contrast ratio and 178 degrees wide viewing angle in both vertical and horizontal orientations.

Intel Core i7 8-Core Processor

Supports Intel Core i7/i5 8/6 Core Processors with Turbo Boost up to 3.80 / 3.60GHz.

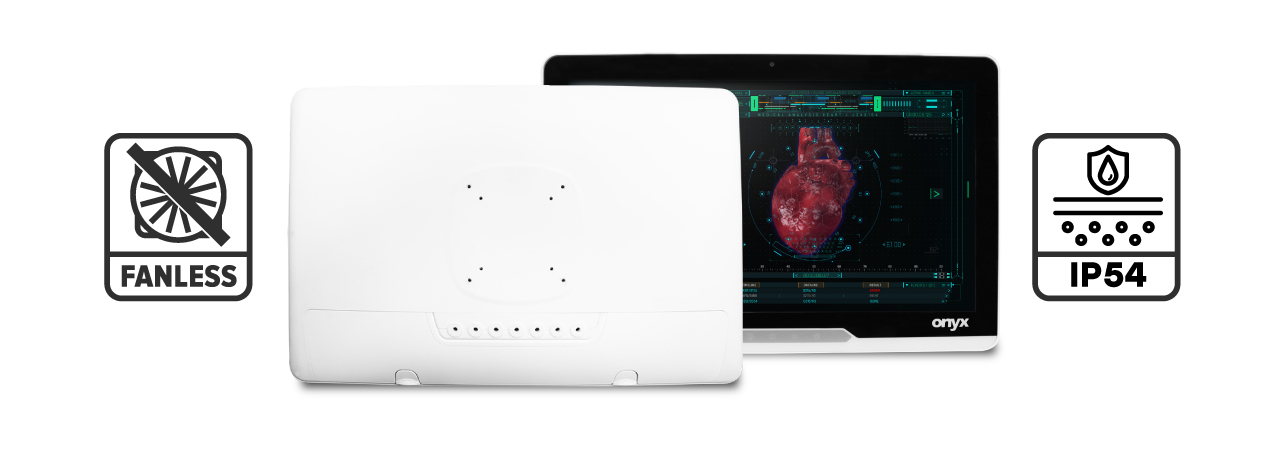

Fanless Cooling & IP54 Waterproof Design for Easy Maintenance

The fanless cooling design eliminates the cooling fan and ventilation holes in the housing, which makes MATE2 IP54 waterproof, so it keeps the environment quiet, clean and lowers maintenance efforts.

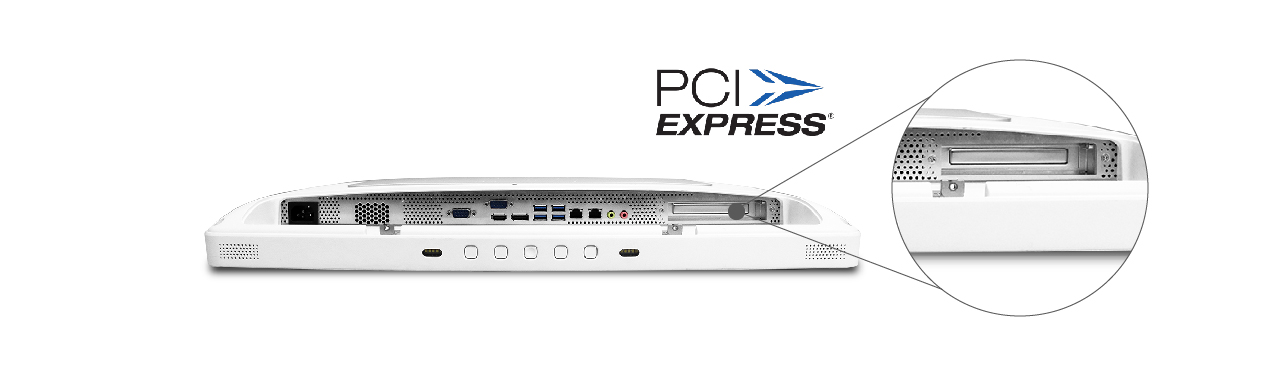

One PCI Express [x4] / [x1] Slot

With an optional PCI Express [x4] / [x1] slot, you can extend the system peripheral capabilities by adding a 4K resolution video capture card, 10Gb fiber-optic LAN card, or isolated RS-232 / USB card.

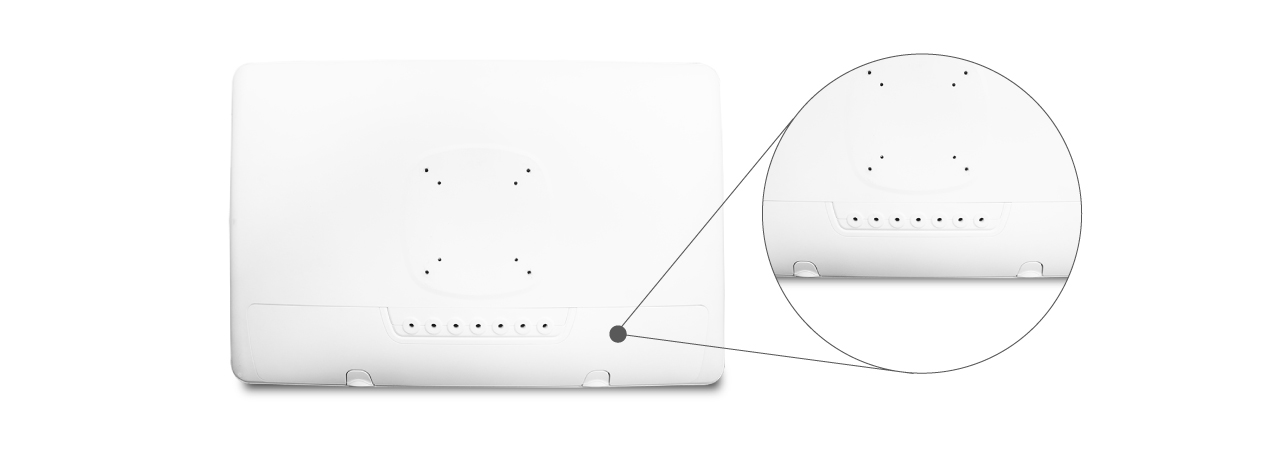

Screwless Cable Cover for Easy Installation

MATE2 cable cover is fixed by two latches instead of screws. You can easily install and remove the cable cover with your bare hands.

Battery Backup Power for Uninterruptible Operation

Uninterruptible operation is critical for medical devices. An optional 25Wh battery backup power supply can support up to 40 minutes of additional operation.

10-finger Capacitive Multi-Touch Screen

10-finger capacitive multi-touch screen guarantees double OR glove usage, 10 billion click life and up to 95% transparency rate.
